Fields ACF & SCF for Elementor and Divi

Fields ACF & SCF for Elementor and Divi bridges the gap between ACF/SCF and popular page builders like Elementor and Divi. It allows users to create dynamic connections between custom fields and visual components, enhancing the flexibility of their WordPress websites.

Key Features:

• Elementor Integration:
  • Dynamic fields powered by ACF or SCF.
  • Shortcodes for displaying galleries and custom fields.
• Divi Integration:
  • Gallery component with grid or slider styles.
  • Loop component for posts or pages, dynamically filtered by ACF or SCF fields.
• Dynamic Fields:
  • Seamless connection between ACF/SCF fields and visual components.
• Shortcode Support:
  • Flexible shortcodes for Gutenberg and other editors.

This plugin is ideal for users who want to extend the functionality of ACF or SCF and integrate it with Elementor and Divi for advanced customization.

Short Description

A plugin that connects ACF (Advanced Custom Fields) or SCF (Secure Custom Fields) with Elementor and Divi, enabling dynamic fields, gallery components, and loop functionality.

Usage Instructions

After the installation process, locate the LKNSCF Settings option in the WordPress admin bar and select the plugin(s) you want to work with.

Create the fields in SCF and define them on the Gutenberg editing page. After filling in the fields, proceed to the Plugin editing page (Elementor or Divi).

1. In the Elementor editor:

   • On the Elementor page, use the plugin’s own components and insert the created fields through dynamic tags.

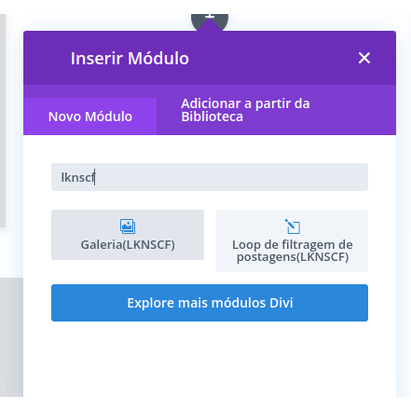

2. In the Divi theme editor, there are 2 components:

   • Performs the Loop and filters the posts inserted in it through the SCR Object component.
   • Creates a gallery in grid or slide style, allowing the user to customize the set of images coming from SCR.

External Libraries

• Slick-carousel: Library that creates sliders or grids dynamically.

Shortcode: [lknscf_field]

Use this shortcode to display a text field or a checkbox. Minimum required parameter: [lknscf_field name=”SCF Field”].

Parameters for [lknscf_field]:

name: The name of the SCF field to retrieve the field value. This is a required parameter.

type: Optional. The type of field (e.g., “text” or “checkbox”). The default is “text”.

label: Optional. The label to be displayed next to the field (e.g., “Name:”).

tag: Optional. The HTML tag to wrap the field. Can be “h1”, “h2”, “h3”, “p” or “span”. The default is “p”.

font_size: Optional. The font size for the field text. The default is 16px.

color: Optional. The color of the field text. The default is (#000000).

background_color: Optional. The background color for the field. The default is transparent.

border_radius: Optional. The border radius for the field. The default is 0px.

checkbox_size: Optional. The size (height and width) of the checkbox. The default is 16px.

Shortcode: [lknscf_gallery]

Use this shortcode to display a gallery. Minimum required parameter: [lknscf_gallery name=”SCF Field”].

Parameters for [lknscf_gallery]:

name: The name of the SCF field to retrieve the gallery items. This is a required parameter.

gallery_style: Optional. The style of the gallery, can be “grid” or “slider”. The default is “grid”.

width: Optional. The width of the images in the gallery. The default is 250px.

height: Optional. The height of the images in the gallery. The default is 250px.

images_count: Optional. The number of images per slider. The default is 1.

dots: Optional. Whether to display navigation dots in the slider. The default is “true”.

autoplay: Optional. Whether to autoplay the slider. The default is “true”.

arrows: Optional. Whether to display navigation arrows in the slider. The default is “true”.

delay: Optional. The delay between slides in autoplay mode, in milliseconds. The default is 7000ms.
